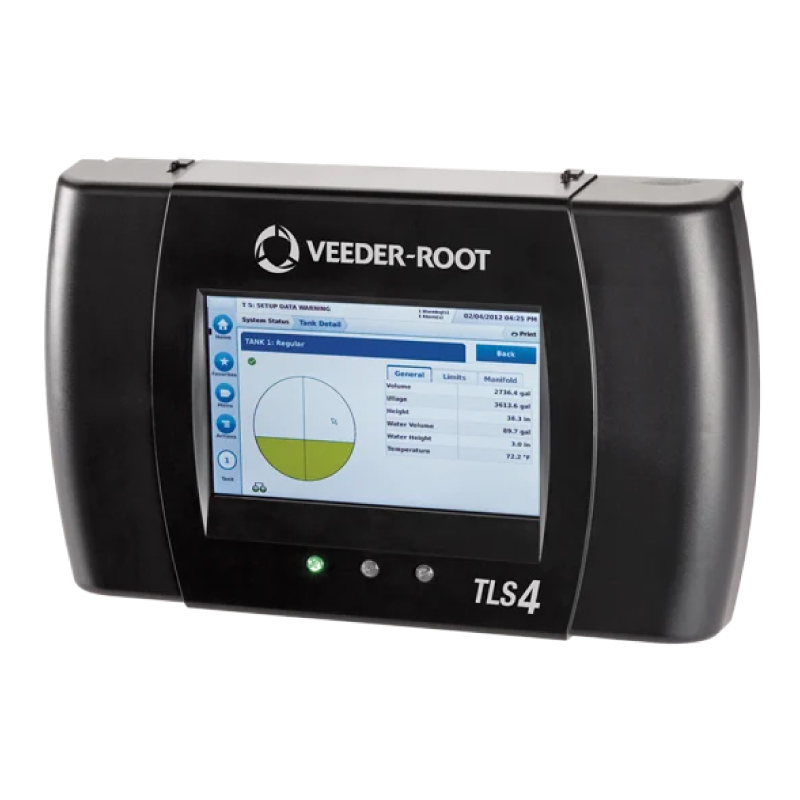

TLS4 Automatic Tank Gauge (ATG) System

• Monitors up to 12 probes and sensors
•  Optional feature upgrades
•  Ethernet dual network

Comprehensive fuel monitoring, wetstock management and tank/sensor leak detection.

• Maximum Tank Probes: Up to 12 Mag Plus or Mag-FLEX probes (can be mixed)
• Intrinsically Safe Probe / Sensor Inputs: 12
• Sensors: Up to 12 of any one type (excludes PLLD)
• Relays / External Inputs: 2 Relays, 1 External Input (built-in)
• Communication ports built-in:
  • 2 serial ports, RS232 / RS485 (2-wire) configurable
  • 3 Ethernet (2 share IP)
  • 2 USB
• SLD Static Tank Testing: Standard with Mag 1 / Mag 2 probes in underground tanks
• CSLD Statistical Tank Testing: Optional with Mag 1 / Mag 2 probes in underground tanks
• AccuChart™ Automatic Calibration with Advanced Diagnostics: Optional
• BIR Business Inventory Reconciliation: Optional
• Delivery Variance Reporting: Optional
• HRM Hourly Reconciliation Monitoring: Optional
• Data Storage & Available Reports: Up to 3 Years
• Network Printing
• No Display Console Version: Optional
• Email: Built-in
• Data Logger Functionality (Insite360): Built-in
• Remote Software Download: Yes (requires console registration)
• Density Monitoring: Yes (requires Mag Plus Density Probes & Float Kits)
• Phase Separation: Yes, with Phase-Two 4” floats
• Storage Temperature Range: -40°C to 70°C
• Operating Temperature Range: 0°C to 40°C
• New features for later in 2015:
  • TSL Timed Sudden Loss detection: Optional
  • VR2 Vapour Recovery Alarm Monitoring: Optional
  • IFSF LON
